Various sites in the Khartse (mKhar rtse) Valley represent important, but hitherto almost unknown examples of the rich and complex artistic culture under Western Tibetan Buddhist patronage from the 10th century onward (Figs. 1-3).

Fig. 1. Khartse Valley

Fig. 2. View of Tsamda area from Khartse

Fig. 3. Landscape around Khartse Village area

The Kardzong (mKhar rdzong) cave is one of the most interesting monuments among them (Fig. 4). The present article gives a first assessment of that site, exploring a little studied component of its decoration, namely ornamental depictions on the ceiling. Embedding them into the long and refined tradition of Indian and early western Tibetan ceiling designs the study attempts to analyze their form, function and meaning. This cave will be compared with a newly discovered sacred space in this valley, the »Tsülgye (Tshul skyes) Cave«  [10] , which is exemplary for a later development of ceiling compositions and different symbolism of sacred space from the 15th /16th C onward, mimicking ephemeral sacred spaces on the model of Central Asian cave temples.

<2>

Khartse is known as the ancestral area of the »Great Translator« (lo chen) Rinchen Zangpo (958–1055) who played a vital role during the phase of the »Later Diffusion of Buddhism« (bstan pa phyi dar) initiated by the kings of Purang Guge in Western Tibet in the aftermath of the collapse of the Central Tibetan monarchy.  [11] The area is located in the centre of Tsamda (rTswa mda) County (Maps 1-2), which lies in the southeast of Ngari (mNga’ ris) prefecture (Tibetan Autonomous Region, TAR). To the east one finds Tsaparang (rTsa rang), the former capital of the kings of Guge.  [12] The area forms a long valley which is enclosed by steep cliffs. The Kardzong cave examined here is located in the high-altitude region (4,300 m) of the upper southern part of the valley (Map 2: VI). It is possibly the only sanctuary within a large complex of caves (ca. 30-40, each ca. 2x3 m in size) which were cut – at an elevation of approximately 200 m from the bottom of the valley – into south-facing cliffs (Fig. 4).

Map of Khartse Valley, Western Tibet (Ngari Prefecture, Tibetan Autonomous Region (map : Ch. Kalantari)

Fig. 4. Cliffs with entrance to the mKhar rdzong cave

<3>

The interior decoration indicates strong links with religious concepts of Tibetan Buddhist schools in Central Tibet (Fig. 5).

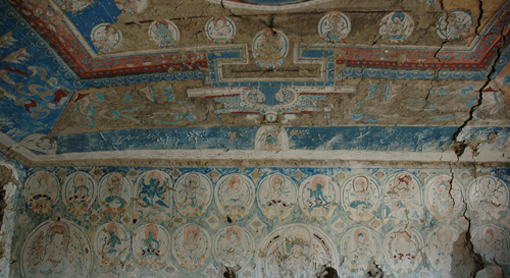

Fig. 5. View of the main/north wall

These schools, for example the »Bri gung bKa« brgyud pa (pr. Drigung Kagyüpa), appeared in Western Tibet from the 13th century onwards. In these religious traditions idealized portraits of the teacher or hierarch of the individual order – conceived as manifestation of the Buddha – surrounded by monks of his school play a central role. The wall paintings on the northern wall show a double portrait of the noble image of Butön (Bu ston) Rinpoche, who lived between 1290 and 1263 and was the abbot of Shalu (Zha lu) monastery in Central Tibet. He is shown giving dharma instructions, indicating his importance as a teacher, and wears the characteristic red hat and sumptuous robe of a lama. In the interstices in the upper zone there are the portraits of eminent teachers of previous periods identified by captions which include one referring to the »Great translator« lo chen, Rin chen bzang po (Rinchen Zangpo; Fig. 6) and the »Royal Lama« lha bla ma Ye shes ’od (Yeshe-Ö).

Fig. 6. Portrait of eminent master Rinchen Bzangpo

On the western and eastern walls, in mirror-like symmetry, one can see five mandalas in a row, while on the entrance wall (southern wall) there are wrathful protectors, local tutelary deities and donor depictions featuring historic personalities identified by inscriptions (Fig. 7).

Fig. 7. West wall, donor depictions and offerings of ‘Five Senses’

The style of the presentation represents a tradition that is among the most refined and technically sophisticated in Western Tibetan Buddhist art. In contrast to earlier temples of this tradition, intensive colours predominate, with generous use of dark red, dark blue pigments as well as gold. Many elements echo earlier styles associated with the kingdom of Pu rang-Guge, displaying affinities with the »renaissance phase« of the paintings in temples at Tholing and Tabo (14th/ 15th C). One finds also affinities with 14th-century Chinese textile traditions which may have provided models for the ceiling decoration, as will be discussed, giving additional clues to the dating.

<4>

The Kardzong cave is unique in this area as it preserves the ‘original’ decorative programme with its ceiling paintings intact. When standing in the temple and looking up to the ceiling, the onlooker receives the impression of a patchwork-like surface decoration seemingly resembling a canopy or tent made of textiles (Diagram; Fig. 8).

Fig. 8. Central ceiling panel showing a flower rosette containing the ‘Avalokiteshvaramantra om mani padme hum hrih’

However, a closer examination as a part of the overall architectonic structure reveals that this system of decoration developed within a rich and refined tradition of construction traditions and ceiling compositions, the latter being a constant theme in the Buddhist temple art of the region.

<5>

At Khartse the ceiling decoration is painted directly onto the rock surface of the cave temple and consists of nine rectangular squares organised in three rows, thus forming an orthogonal grid system. The organisation in rectangular panels clearly preserves the memory of local architecture constructed of mud-bricks, stone rubble and timber beams decorated with different textile paintings between the wooden elements of the ceiling.  [13] These paintings of textiles organized in a symmetric grid at Khartse thus allude to an architectonic unity with a pseudo-lantern-like centre placed on a system of beams and rafters. A comparable example of this type of centralised ceiling design – representing a hierarchy towards the centre and symbolically honouring and elevating the focus of worship below - where often a stupa or main icon is placed - can be found at Lalung/ Spiti (ca. beginning of the 13th C). The spatial concept behind this type of ceiling design is perhaps related to the strong and lasting evolutionary history of centralised ceiling compositions which characterise accessible stupas of the Alchi-group in Ladakh.  [14] In fact, at Khartse stupas of clay (today in ruinous state of conservation) are positioned in the four corners.

<6>

With regard to the motifs depicted in the individual panels at Khartse, the ceiling plan displays a centralized ‘mandalic’ layout which has a distinct hierarchical structure with the highest-ranking element at the centre featuring a lotus medallion with inscribed letters. The central element consists of a central square with smaller squares at the cardinal directions and in the corners while rectangles are placed in the interstices. Within this arrangement of compositional units following distinctive decorative themes can be distinguished:

<7>

(1) The central element (Fig. 8, cf. Diagram: ‘A’) contains the most complex motifs, namely a lotus rosette  [15] surrounded by lotus tendrils forming a six-petalled flower containing letters in Lantsa script which represent a mantra. This composition is framed and emphasized by a wickerwork band. The letters represent one of the most popular Buddhist mantras, namely the Avalokiteshvaramantra om mani padme hum hrih. The mantra begins with the letter in the petal on the upper left side of the rosette and ends with the syllable 'hrih' in the centre (Thomas Kintaert, verbal communication).  [16] One personification of this mantra is Sadaksari-Lokeshvara, who is depicted in the wall-paintings of the Bar rdzong (ca. 13th C) cave in the same valley (cf. Map: IV F).  [17]

<8>

(2) At the cardinal directions there are four medallions each with a letter in the Lantsa script at their centres (the syllable 'hrih', which is identical with that in the centre) alluding – as already stated – to the mandalic layout of the ceiling composition.  [18] The letters are surrounded by tendrils from which issue different flowers (perhaps peonies, hibiscus and lotus) on which rest the ‘Eight Auspicious Signs’ (bkra shis rtags brgyad) (Diagram: ‘B 1-4’; and Fig. 9).

Fig. 9. Detail, Panel Group B, Ceiling medallions in the four cardinal directions showing the Eight Auspicious Symbols and a central letter (hrih) in Lantsa script

The latter are present everywhere in Tibet as lucky signs and are also used in mandala rituals as offerings. These ornaments recall earlier ceiling decorations in the ambulatory of the Tabo Main Temple (c. end of 10th C; Figs. 19.-19A.).

Fig. 19. Tabo, valanced above the sanctum of Assembly Hall

Fig. 19A. Tabo, ceiling above sanctum, detail in corner with one of Eight Auspicious Symbols

There one finds different airborne offering deities and auspicious symbols in the corners – alluding to a mandalic configuration (comparable inter alia with a ca. 10th C painted mandala from Dunhuang ; cf. Fig. 35) and thus representing a cosmological concept of space with the sanctum in its centre.

Fig. 35. Dunhuang, Mandala on paper, c. 10^th C.

This complex iconographic ceiling programme in the sanctum of Tabo contrasts with that of the assembly hall of this temple, where surface patterns with symbols associated with worldly wealth and abundance (such as vases of plenty filled with flowers, heavenly bejewelled trees, lotus rosettes and cornucopia emitting jewels) predominate, showering worldly riches onto the Buddha and the devotee.  [19] These popular thematic sets from an Indian religious (Hindu and pre-Buddhist) substratum were integrated into Buddhist mythology at a very early stage (cf. Papa-Kalantari 2007  [20] , 2008  [21]). In the early phase of this artistic tradition (10th – 13th C.) these popular symbols are organized as textile-mimicking patterns. Only at Tabo they are depicted on actual cotton fabrics which were fixed between the beams to protect dust from falling down. It has to be noted in this context that there is also the influential tradition of textiles in the Indian tradition to shape ephemeral ritual spaces, which is still observable today in Buddhist performances in Himachal Pradesh (Kalantari, forthcoming), and which appears to be reflected in this decorative system in the early Western Himalaya temples. Furthermore the sizes of textile strips attached to the ceiling and types or decoration observable in the Tabo Dukhang can be compared with early Indian ceremonial banners from Gujarat for the Indonesian market (Papa-Kalantari 2008, see note 21: Fig. 26; Ruth Barnes, Oxford, Ashmolean Museum, verbal communication 2002).  [22]

<9>

(3) By contrast, the four corners at Khartse are inhabited by images of possibly Chinese-style dragons  [23] and phoenixes encircled by rainbows and clouds indicating the celestial sphere (Diagram: ‘C 1-4’; Figs. 11 and 12); the latter motifs are found in the later Tabo Brom ston Lhakhang (Spiti, ca. 15th C) protecting the ceiling space above the entrance to the temple. A counterpart to these Chinese-style mythical creatures in the Tibetan realm can also be found in the same cave, namely naga (serpent spirits), which are in addition often depicted as supports of thrones of deities (Fig. 12 - 14).

Figs. 12.-14. Tabo (Spiti, Himachal Pradesh), Dromtön Lhakhang

They are responsible for controlling the weather. Thus - despite inhabiting the underworld - the ceiling is a suitable place for their representation. Like the Indian and Tibetan naga the legendary Chinese dragon has a strong affinity with weather control.  [24] Two roundels show phoenixes in flight with their long necks turned towards each other in a kind of yin-yang form. Dragon and phoenix are ancient Chinese astrologic and geomantic symbols equated with the cardinal directions.  [25] Thus the temple alludes here to a celestial world reflecting early concepts of nature and cosmogony as integrated into the Buddhist world system. These mythical creatures are also frequently found as motifs on contemporary liturgical textiles (see below) and at the zenith of ceilings of early Buddhist cave temples at Dunhuang and also – in closer temporal and geographic proximity – on the ceilings of cave sanctuaries at Dungkar (ca. mid. 12th C, Figs. 41-42).  [26]

Figs. 41.-42. Dungkar, Ceiling, ‘Small Cave A’

<10>

(4) Between the latter two types of panels at Khartse are complex ornamental surface patterns, such as linked squares with circles – perhaps echoing vases (bum pa) of earlier (10th -12th C) phases – together with rosettes in strict geometric configurations (Diagram: ‘D1-8’; Figs. 15 and 16).

Figs. 15.-16. Textile depiction in the interstices (Group D)

The dominance of flowers and lotus rosettes in particular on Western Tibetan ceilings of various phases may echo symbolism of the Buddha as well as the practice of flower offerings which is essential in Buddhist ritual and worship. Lotus medallions in pearled circles which are depicted at Tabo are a key element in the depiction of the sitting textiles of the Buddha in early Kashmir-style art.  [27] These complex motifs alluding to luxury textiles are often found on the temple’s ceilings - the celestial throne of the Buddha - which contrast to the textile motifs found in the wall paintings (Papa-Kalantari 2007, see note 20).  [28] There are also significant parallels to the rich tradition of Kashmiri-influenced Indian wooden temples, one important example being the Mirkula Devi temple in Udaipur (Lahaul-Spiti; cf. Papa-Kalantari 2007, see note 20: Fig. 18), featuring extremely find padma (lotus blossoms) and celestial gandharva in the corners of the wooden ceiling.

<11>

Regarding the function and meaning of the individual compositions in the Kardzong temple at Khartse and their relation to the overall programme, the side panels containing the »Eight Auspicious Symbols« – recalling actual honorific covers or canopies  [29] – may have been designed to honour the stupas below as well as the two main deities in the temple of which today only the thrones remain.

<12>

Comparative material of such honorific cloth made of luxury textiles is provided by a sumptuous, large size silk in an Austrian private collection (Sammlung Dr. Prammer), which was exhibited on the occasion of a seminar held by the Austrian Society for Textile Art Research (TKF) in September 2010 (Figs. 21 and 21A) at Schloss Aschach (Upper Austria).

Figs. 21.-21A. Sumptuous silk textile (honorific cover or baldachin), Ming-period, collection Dr. Prammer

The rectangular textiles of silk features a centralised surface pattern with middle rosette and lotus tendrils with flowers growing out of it on which rest letters, perhaps lantsa script representing the mantra om mani padme hum hrih, found also in the zenith panel at Khartse. The complex configuration forms a large medallion decorating the gold-colour silk ground in a colour palette of light blue, dark blue and red. Another example from the same collection features a surface pattern with stylized lotus rosettes (with characteristic eight petals in the centre), linked in a geometric grid system (Fig. 22), the latter can be compared with the ornament of ‘group D’ at Khartse (Fig. 15).  [30]

Fig. 22 Chinese Central Asian luxury cloth of silk, collection Dr. Prammer

Fig. 15. Textile depiction in the interstices (Group D)

<13>

The central and main medallion – or honorific cover – containing letters in the Lantsa script at Khartse is depicted above the central space in the temple, which is empty today. The composition of the Avalokiteshvaramantra om mani padme hum hrih (»Hail the Jewel in the Lotus«) at the centre is an important component in the overall programme of the temple and represents a central component and higher truth of the Buddhist belief system (cf. also Fig. 17).  [31]

Fig. 17. Khartse, Cang lo chen cave temple, ceiling

The holy letters or ‘vocal sounds’ in this cave are ‘enthroned’ like deities on a lotus and they may reflect Tibetan ritual practices of meditation, recitation and visualization by the Buddhist devotee in the temple. I cannot get here into the complex factors which resulted in the importance of the written word in Tibetan culture and the different layers of meanings of letters decorating Buddhist architecture. However. ‘Words as icons’ are a central component in Tibetan realm considering the fact that virtually all Tibetan literature is religious. “Tibetan Alphabet was adapted from an Indian model in order to translate the Buddhist canon into the Tibetan language […]” and therefore “ […] all writing is surrounded by an aura of the supernatural”.  [32]

<14>

(5) At the borders of the Khartse ceiling is an assemblage of strips decorated with different ornamental patterns (Diagram: ‘E1-12’; Figs. 15 and 16), while (6) on the uppermost zone of the wall displays valances of textiles forming a continuous frieze (Diagram: F; Figs. 5 and 16), constituting a constant theme in the decorative programme of temples in this region (cf. the c. mid 11th C Nyag cave temple/ Nyag phug pa at Khartse: Figs. 18.-18A; and the 10th 11th C Tabo Assembly Hall: Figs. 19-19A.).

Figs. 18-18A. Nyag temple, valances (c. mid 11.th C)

They recall the old tradition of mythical beings such as kirttimukha  [33] – terrifying masks, emitting pearls and textiles – which have a protective and wealth-bestowing function. These themes form an important element in Indian architectural ornamentation and are frequently represented on pillars, thrones, shrines, lintels and as the uppermost element on torana (gates), marking and protecting the sacred sphere of gods as opposed to the world of wilderness and nature (cf. Lehner 2006  [34] : 143).  [35] Thus painted valances in the uppermost zone are reminders of an architectonic relationship. These jewel-encrusted textile hangings also echo the cultic context, namely ritual practices of precious textiles and valances (dra ba [dang] dra phyed) made of silk brocades offered to the temple by pious devotees, which have constituted an important aspect of the aesthetic-sacred space of Tibetan temples since earliest times (for 9th C example in Dunhuang: Fig. 20) up to present day.  [36]

Fig. 20. Dunhuang, silk valances (after Whitfield and Farrer 1990)

They were often positioned on the uppermost elements of sacred spaces, on constructive elements and altars, and were then also translated into the medium of painting where – over and above their decorative and honorific function – they became markers of an overall architectonic unity.

<15>

At Khartse, the illusionist representation of actual Buddhist ritual textiles and temple hangings is particularly dominant, reflecting the long tradition of textiles as objects of merit, meditation, devotion and trade, which has resulted in Buddhist temples being today among the most important depositories of medieval luxury textiles.  [37] In terms of both style and technique, the central panel recalls damasks or precious textiles decorated with embroideries. Additional interesting comparative material is provided by ritual garments from the important silk-producing centres of the Yuan dynasty (1279-1368). A canopy in the Metropolitan Museum decorated with threads of gold, typical of the Yuan period, is of special interest in this context (cf. Watt & Wardwell 1997: Pl. 60; p. 196).  [38] The paired confronting phoenixes in flight shown on it strongly recall the mythical beings depicted on the corner panels at Khartse. While the complex ornamental patterns at Khartse (squares and linked circles) recall Chinese brocades from later periods (cf. Gao Hanyu: 1992: fig. 121)  [39] , some of the small-scale patterns can again be compared to silk damasks  [40] from the Yuan period (cf. Watt and Wardwell 1997, see note 38: fig. 42, p. 153). Characteristic of the latter type of pattern at Khartse are lobed roundels encircling a coiled dragon against a background of tiny squares (Fig. 16). The presence of this type of textile tradition as a possible model for the Khartse ceiling can be historically linked to the strong Sino-Tibetan relations which prevailed under the Yuan dynasty (during the 14th century Yuan silk textiles were transported as far afield as Italy; ibid. 18). This shows that textile depictions in Western Tibetan and Western Himalaya temples constitute a hugely important resource for issues of material culture, trade relations and cultural interactions and thus also for the dating of the temples.

<16>

The illusionist textile paintings on the ceilings play an important role in the decorative systems and symbolism of Buddhist sacred spaces in the Western Himalaya and Western Tibet at different periods. In the early phase (10th to 12th C) there is a predomination of textile depictions emphasizing the architectonic structure and its boundary, while in later phases, such as Dungkar (13th C.), as will be shown, we find a synthesis of the latter architectonic system with mandalic structures and cosmological symbols alluding to a Buddhist heaven. However, in contrast to conclusions in previous research, the architectonic constructive unity is never undermined in the early Buddhist artistic phase from 10th to 13th C.; thus Klimburg-Salter’s generalized canopy-interpretation for the Tabo (1997, see note 8) and Dungkar-ceilings (2001, see note 9) has to be refuted. Collating new data from examples of this genre of painting during different periods as a single corpus allows a fresh perspective and the interpretation of the structural principles of ceiling designs. The results shows that only in later periods (from the 15th C onward) we find illusionist depictions opening the constructive borders of built space and mimicking a honorific cover or canopy, as shall be shown.

<17>

Consistent features in various periods are textile motifs, which enhance the visual richness and colourful splendour of sacred space. They reflect the long history of decorating and thus dignifying the Buddhist temple with sumptuous draped cloths and religious hangings – including baldachins, circular banners of silk (rgyal mtshan), silk brocades with gold and silver threads (gya ser) wrapped around pillars, decorating thrones and ceilings, used in ceremonies, and honouring the deities – and indicate the high status of textiles in Tibetan culture. They have constituted an important aspect of the aesthetic space of Tibetan temples up to the present day. As a result of the liturgical value of ritual cloths, over and above their economic value, Tibetan temples became one of the most important repositories of precious medieval textiles, and are thus of huge significance for the ongoing reconstruction of their evolutionary history in Tibet, India, Inner Asia and China.  [41]

<18>

In the Buddhist ritual context, there is ample evidence for the importance of offering textiles as an act of merit in Buddhist texts since earliest times. Judging from the great number of banners and votive textiles found at Buddhist cave sites along the southern Silk Road in eastern Central Asia, in Tibet and depicted in the temples discussed here, the devotees believed the promise in a speech of Maitreya to his followers on the acquisition of merit by making offerings of precious cloths: »It is because you have worshipped Shakyamuni with parasols, banners, flags, perfumes garlands [...] that you have arrived here to hear my teaching« (Conze 1959: 240)  [42] ; (Fig. 23).

Fig. 23. Ayutthaya, worshippers offering textiles (photo: E. Lehner)

<19>

There is ample evidence for the practice of offering textiles in ceremonial and devotional rituals. Piles of fabrics are likewise shown in donor depictions at Tsparang, Red Temple, documenting offerings of textiles to the temple (Papa-Kalantari 2007, see note 20; Fig. 24 and 25-25A).

Fig. 24. Tsaparang, donor depiction with precious offerings, among them silks (photo: L. Fournier)

Fig. 25-25A Khorchags, offerings of kataks (photo: Christiane Kalantari)

Fig. 26. Lhasa, Jokhang, space for the purchase of precious silk garments for the `namze´ of the Holy Jobo statue

Furthermore, the donation of precious fabrics is mentioned in inscriptions at Wanla (Ladakh, 13th-14th C; cf. Papa-Kalantari 2007: 151). Whether used as ritual paraphernalia or translated into the medium of painting, textiles are thus charged with the ‘religious aura’ and power through their liturgical use, material value and personal veneration by the devotee. In the Lhasa Jokhang a space near the sanctum is specifically dedicated to the distribution of luxury textiles of silk (as well as gold pigments), to be offered to the central focus of worship for Buddhist Tibetans, the Jowo image, in exchange with offerings (Fig. 26). There the devotee receives pieces of old namze (robe of silk brocade) from the Lama as contact relics (Fig. 26). Offering silks are also tailored to dresses for sculptures and other religious paraphernalia in the temple (Figs. 27 and 28).

Figs. 27-28. Offering textiles tailored to robes for deities and ritual paraphernalia in the temple

<20>

Furthermore the representation of textiles, banners, scarfs and umbrellas (gdugs) on images of thrones, celestial palaces, stupas (Figs 29 - 31) and ceiling paintings in early Buddhist temples of the Western Himalaya and Western Tibet provide important insights into the ritual dimension of Buddhist practice and into personal forms of religious devotion.

Fig. 29. Kakrak (Hindu Kush, ca. 7^th C), ceiling depiction, pillars ‘attired’ with precious cloths (Musée Guimet)

Fig. 30. Lalung, heavenly throne hung with textiles

Fig. 31. Alchi, Sumtsek (Ladakh, ca. 1200), stupa depiction attired with textiles

They recall various passages in the Lotus Sutra in which the veneration of the stupa with precious cloths is described as most meritorious. There is also the important aspect of the stupa containing the relics of the Buddha. The stupa thus became a monument recalling an enduring substitute for the bodily aspects of the Buddha and the everlasting memory of His miraculous secret power (‘Der Stupa als Bauwerk ist für die anikonische Darstellung des Buddha in der indischen Kunst […] dauerhafter Ersatz für den sterblichen Körper, in dem nun eine geheimnisvolle Kraft verewigt wird’, Ebert 1985: 41).  [43] In this concept of space in the temple – and in analogy with the symbolism of the stupa – textile depictions in a Buddhist temple may also allude to the attire of the Buddha and his dharma body (body of the teaching), veiling and unveiling the Buddha's secret nature, which is beyond physical reality and thus cannot be portrayed.  [44]

<21>

On a higher symbolic level, textiles on the ceiling echo the honorific function of the umbrella indicating worldly and spiritual sovereignty  [45] : Atisha, the famous Indian master, who arrived in Western Tibet in 1042, was reputed to have been entitled to a retinue of thirteen umbrellas which ‘honorifically elevated his spiritual status to that of a Buddha’ (Beer 2003, see note 24: 182).  [46] However, in the Western Himalaya temple, also the symbolism of local traditions of ephemeral dwellings and ritual fabrics protecting, marking and honouring the sacred area and defining a religious space has been continued.  [47] Sacred spaces defined by carpets, precious hangings and thangkas are as well a constant theme in contemporary Buddhist theatrical performances by the Buchen in Spiti (Cf. Kalantari  [48] ).

<22>

Textile depictions also indicate that that sacred space is not solely defined by built architecture and – perhaps equally importantly – by the iconographic programme and pantheon of deities, which generates a precisely ordered three-dimensional space other forms of imaginary ideal space in which the plan of the mandala plays a central role. Temples also take up and continue the memory of ephemeral architecture and precious honorific textiles defining sacred areas and holy places, and transform the dwelling into a virtual celestial throne or palace.

<23>

A related dimension relevant in this context is the function of textiles in various ceremonies and consecration rituals in which vases (bum pa) – containing various precious substances and consecrated waters embodying the visualized mandala of deities (Beer 2003, see note 24: 199) – and pillars or wooden posts with textiles draped around them play a significant role. This important aspect of the consecration of the sculpture or temple may also be reflected in representations of the thrones of deities at Bamiyan, Kakrak (both in the Hindu Kush, Fig. 29), Dunhuang, Tabo (mid.11th c.; Papa-Kalantari 2007, see note 20: fig. 19 and 27) and the chronologically slightly later Lalung (Fig. 30) (in the Western Himalaya), which are all attired with clothes.  [49] The textiles draped around the vase and the throne-pillars may honour the deities ‘dwelling’ in them or vases of life-sources in general.  [50]

<24>

A unique painting in the Alchi Sumtsek (Ladakh, ca. 1200; Fig. 31) shows a man climbing up a rope or chain and carrying on his back a large piece of cloth.  [51] It may not only reflect the act of offering a ritual scarf to the stupa but perhaps it also alludes to the final phase of consecration ceremony, comparable to the Hindu temple, when the vase and the banner are positioned on the top of the temple (shikara). Above the man is an umbrella from which bells (ghanta) are suspended – disseminating the sound of the dharma – as well as long streamers with patterns recalling resist-dye techniques known as batik, the motifs of which are also found on the ceiling of the Alchi Sumtsek. The stupa depiction is another sign that the presence of the Buddha in its architecture continued to be important, and the architecture to assure that contact with Him is present.

<25>

On the level of personal veneration and popular religious traditions textile depictions also reflect the aspect of the interaction between the devotee and the holy image (sku rten), as an important component of Buddhist practices. Textiles such as precious clothes made into robes and in particular small scarves of silk kataks (kha btags) are offered by the faithful to the deity, wrapped around his body in direct contact with it, and may be given back to the devotee by a religious dignitary. In this way objects are ‘charged’ with the blessing and power or protective qualities of the image or a charismatic person and are transformed into ‘contact relics’ (Figs. 25.-25A).  [52] Depictions of material culture, textiles, jewellery and ornaments in the temple thus not only mark, embellish and honour sacred space. They also indicate that it is through offerings and liturgical paraphernalia in rituals as well as sensual interaction with the holy image (sku rten) on the part of the Buddhist devotee with objects such as precious silks that the majesty of the Buddha and his teaching unfold their full significance. All these elements reflect the vividness, sense of joy, beauty and sensuality for which the softness of silk is exemplary, constituting an important aspect of the cultic dimension of Buddhism in Tibet.

<26>

Another important aspect related to the donation of precious silks in Tibetan culture is the concept of offering of ‘Five Senses’ which can be found in an image depicted above the donors in offering mode in this cave (Fig. 32).

Fig. 32. Khartse, mKhar rdzong, depiction of the‘Offering of the Five Senses’

The ‘Five attributes of sensory enjoyments’ also denominated as ‘Five Desire Qualities’ (‘dod yon sna lnga) which form a group of the most beautiful objects which can attract the five senses of sight, sound, smell, taste and touch (reg bya). Among these offerings that of touch is typically represented as a silk cloth.  [53]

To summarize the Kardzong’s ceiling design displays a strict architectonic system with inserted ornamental patterns alluding to textiles of merit and meditation which include symbols of iconographic value signigicant for the overall programme and spiritual concept of sacred space.

<27>

In the last part of this paper we shall provide a comparative analysis of the above discussed cassette type of ceiling composition in the Kardzong with a contrasting type of ceiling design in the same valley, providing an important example for a completely different relation between ornament and architecture. The latter can be found in a small cave temple, provisionally denominated as Tsülgye Cave which has been discovered by Tsering Gyalbo during a documentation campaign in 2010, dating perhaps to the 14th or 15th century. The ceiling depictions of this cave display a composition with a unique decorative programme, which – to our knowledge – has not yet been analysed or documented (Fig. 33-37A).

Figs. 33-34. Location of Tsülgye (Tshul skyes) and path to Tsülgye Cave and view from entrance inside

Fig. 35. Dunhuang, Mandala on paper, c. 10^th C.

Fig. 35. Dunhuang, Mandala on paper, c. 10^th C.

Figs. 36-37A. Tsülgye Cave, internal views

The entrance of the cave is in the shape of a corridor with a barrel-vaulted ceiling, featuring textile patterns, which mimic printed clothes attached to the ceiling. Fragments of figural paintings can be seen below. This type of vaulted corridor can be compared with the ca. mid. 12th C Zhag cave in Pedongpo Valley near Dungkar.  [54] However - in contrast to the latter - the lower parts of the Tsülgye Cave are badly damaged leaving only the rocks exposed. Local people informed that the floor is covered by debris and that the space was used as a shelter for animals resulting in a damage of the lower parts of the wall. It is also possible that the wall-decoration has never been completed.  [55] From the remaining ceiling decoration, which is luckily almost intact, one can assume that there was perhaps originally no clear articulation of wall and ceiling as separate units in terms of built structure. Rather the decorative scheme generates a distinctive ‘imagined’ architectonic unity designed to shape a religious space which contrasts to earlier designs which are consequently subordinated to the local architectonic structures of mud-walls and timber roof. The wall-paintings of which no traces are left had a crowning element of valances decorated with strings of pearls. These valances allude to an architectonic unity namely solid walls and an uppermost border decorated with textile hangings, as already discussed. When the practitioner enters the religious space he has the impression of painted pilasters or poles on four sides of the walls on which rests a circular medallion representing a honorific cover made of a precious material. Between these pilasters, which may mimic poles of the honorific cover or baldachin - resting on the corners of the lower square space - is depicted the well known group of ‘Eight Auspicious Symbols’ (T. bkra shis rtags brgyad) on a dark background. The space between baldachin and valances obviously alludes to an open space: thus the walls illusionistic open to heaven, covered by a honorific cloth; this principle is very much in the tradition of Buddhist cave temples in Dunhuang (Figs. 38-40; Papa-Kalantari 2000, note 15: Fig. 12).

Figs. 38-40. Dunhuang, Mogao Caves

Interestingly, these pillars are organized mainly on the back part of the space and also the auspicious objects between the poles are arranged to satisfy a standing point in the centre and looking on the back wall of the temple on which was perhaps attached the main icon. Comparative material for the relation of painting and architectonic layout, namely the combination of a centralized mandala ceiling composition on an arched surface, is provided by a small cave temple at Dungkar; also the layout of the mandala featuring a lobed medallion with inserted deities in the petals is similar (Figs. 41 and 42).

Figs. 41.-42. Dungkar, Ceiling, ‘Small Cave A’

<28>

The medallions in both temples show in the central region instead of a lotus rosette – on which is usually based the mandala - a medallion with eight spokes recalling a vajra-wheel. A diagram for a mandala (perhaps a visual aid for a ritual) from Dunhuang (ca. 10th C; Fig. 35) is perhaps the ultimate model of this type. In the outermost rectangular level are the ‚Eight Auspicious Signs’, which are also to be found in the outer spheres at the ceiling of Tabo above the sanctum (Fig. 19A). The Tabo ceiling above the cella (end of 10th C) is thus perhaps the first concrete indicator of a mandalic configuration of space in a Western Himalaya temple, circa dating from the same period as the Dunhuang mandala.

<29>

The small Dungkar cave contrasts to the larger caves at this site, where one finds ceiling structures featuring complex stepped surfaces, alluding to a pseudo-lantern ceiling and also to an architectonic system imagined in a mandala palace, which are also to be found in contemporaneous ceiling concepts at Alchi (Ladakh, India, ca. 1200). Many elements at Dungkar stand in the tradition of Central Asian ceiling designs (e.g. the Western Xia cave 3 in Yulin), and also take up many motifs such as cosmological hybrid creatures. However in the early Western Himalaya phase the Central Asian illusionist baldachin ceilings of Dunhuang and Yulin are never taken up.  [56] In this early Indic phase in the Western Himalaya, textile depictions are clearly subordinated to local architectonic systems and never allude to a unified honorific cover.

<30>

In contrast, a key element in the Tsülgye-Cave not found in earlier cave temples at Dungkar - is the combination of an illusionist baldachin and a mandala composition. The central ceiling medallion representing a mandala at Khartse shows an outer fire ring (appearing like fringes of a carpet or textile) and a vajra ring, framing a ten-petalled flower-like rosette in which are arranged wrathful deities around a central roundel in which is enthroned the main icon; in the interstices are ornamental elements alluding to textiles; while in the small cave at Dungkar no textile elements are depicted on the mandala ceiling; here limits of space are transcended based on the concept of the cosmologic diagram for which the mandala is exemplary; this concept contrasts to textiles depictions between the imitated wooden elements of the mandalic ceiling designs in the larger caves in this valley (Papa-Kalantari 2007, see note 20: Fig. 30) emphasising local architectonic concepts. The medallion at Khartse displays a colour scheme indicating four quarters representing the cardinal directions. Furthermore the ceiling is arched which - in addition to the structural function - enhances the mandalic hierarchy towards the centre with the central deity in the highest position.

<31>

This religious programme recalls – as already stated - ceiling depiction at Yulin (Xinjiang, China) combining the concept of the illusionist baldachin with an eight-petalled flower-like rosette containing a mandala configuration; one example at Yulin (Cave 10) features the four Jinas residing in the respective directions (with intermediate Buddhas), around a central Vairocana, dateable into the Yuan period (cf. Zhao Le Nin and Luo Ke Hua, 1997: Pl. 112)  [57] .

<32>

To sum up: in the evolutionary history of early Western Tibetan temples the multilayered symbolism of textile depictions and ornament is an important component of the overall programme of the temple reflecting various aspects of religious experience in Tibetan Buddhism. This attempt at analysing the individual motifs in the ceiling ornaments has enabled a new reading of their function in ceiling compositions as a part of the overall iconographic programme and markers of the evolutionary history of architecture in the region. The paper focuses in particular on the various uses of textiles in the Buddhist ritual practices and their impacts on the definition and perception of sacred space in the Tibetan Buddhist sphere.

<33>

The Kardzong at Khartse represents a unique example in the rich evolutionary history of ceiling paintings, displaying a precisely structured unity of architectonic and pictorial elements achieved by material illusions (reflecting the cultic component and veneration through precious clothes and honorific covers) and the orthogonal grid system, with its echo of architectural features. This synthesis of material illusionism, centralized plan and hierarchy of pictorial elements reflects the bond with the overall spiritual programme that culminates in the centre. The latter may perhaps represent a central truth in the programme of this sacred space. A hierarchy from the worldly sphere in the corners to a higher truth at the centre  [58] – the depiction with the highest status and highest level of religious conceptual abstraction – can be observed, corresponding to the concept of the Buddhist spiritual path and realization of the ultimate truth.

<34>

Through collating new data from ceiling compositions of different phases in this region and focusing on the question of the relation between ornament and architecture the authors tried to demonstrate that, while in early phases of this artistic tradition – which I propose to term Indo-Tibetan cult-spatial tradition - textile depictions and ornament are subordinated to traditional architectonic structures, i.e. simple mud buildings with timber roofs decorated with depictions of sumptuous garments (reflecting the use of textiles in local architecture), in later phases they become true illusions of ephemerals spaces or symbolic canopies shaping, honouring and protecting sacred space, which reflect rather courtly cultures of status and religious authority of urban elites in Central Asia. From the 15th C such ephemeral structures – combined with mandala configurations as aids of visualization - were transferred also into the sacred realm, directing the view of the practitioner to a painted dome of heaven.  [59]
